TTGO TWatch : Arduino 개발 환경 만들기(개발툴 설치)

OS/Arduino 2020. 12. 27. 18:37 Posted by 파란크리스마스

출처

Arduino IDE 설치

다운로드 주소 : https://www.arduino.cc/en/Main/Software

Arduino IDE에 M5Stack 보드 추가

arduino-esp32 다운로드

Github 저장소(espressif / arduino-esp32)에서 arduino-esp32-1.0.1.zip 파일 다운로드

arduino-esp32 설치

다운로드 받은 파일 arduino-esp32-1.0.1.zip을 [Arduino IDE 설치경로]/hardware/espressif/esp32에 압축 해제

get.exe 실행 파일을 관리자 권한으로 실행

[Arduino IDE 설치경로]/hardware/espressif/esp32/tools 디렉토리에서 get.exe 실행 파일을 관리자 권한으로 실행 실행

Arduino IDE를 실행하고, 메뉴[툴] > [보드] > [M5Stack-Core-ESP32] 선택

메뉴[툴] > [포트] > [COM13] 포트선택

M5Stack 라이브러리 설치

메뉴[툴] > [라이브러리 관리] 선택

M5Stack 라이브러리 설치

[HelloWorld] 예제 선택

예제 실행

예제 실행 결과




https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_dev_index.json
https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library


댓글을 달아 주세요

허스키렌즈(HUSKYLENS) 펌웨어 업데이트

OS/Arduino 2020. 9. 9. 00:53 Posted by 파란크리스마스

출처

파일 다운로드

HUSKYLENS 펌웨어 업그레이드에 필요한 파일을 다운로드합니다. https://github.com/HuskyLens/HUSKYLENSUploader/ 사이트에서 방문해서 "Download ZIP"을 클릭합니다.

CP2101 용 드라이버 설치

USKYLENS는 USB로 시리얼 통신용 CP2101 (USB to UART Bridge) 칩을 사용하고 있어 CP2101 용 드라이버를 설치해야 합니다. ZIP파일 압축을 풀고 해당 윈도우 버전의 driver 폴더에서 설치 프로그램을 실행합니다. Windows10 용 64 비트 설치 (CP210xVCPInstaller_x64.exe)입니다.

업그레이드 실시

HUSKYLENS를 USB 케이블로 PC와 연결하고 펌웨어 업데이트용 소프트웨어 (K-Flash.exe)를 실행합니다

Device 선택

K-Flash.exe를 실행하면 HUSKYLENS에 탑재 된 CP2101과 자동으로 연결됩니다.. CP2101과 연결이 올바르게 인식하면 Device 란의 콤보박스에 "Silicon Labs CP210x USB to UART Bridge"을 찾아서 선택합니다. 콤보박스 목록에 "Silicon Labs CP210x USB to UART Bridge"가 없으면 HUSKYLENS와 USB연결을 확인하시기 바랍니다.

펌웨어 파일 선택

Firmware 란의 오른쪽에있는 [...]버튼을 클릭하여 펌웨어 (HUSKYLENSWithModelVx.x.xStable.kfpkg)을 선택합니다. 선택 후 Firmware 란에 파일 이름이 표시되어 있는지 확인합니다.

펌웨어 업데이트 실행

'Open terminal after flash "의 체크를 해제합니다.
"Flash"를 클릭하여 펌웨어 쓰기 시작합니다.

펌웨어 업데이트 진행

펌웨어 쓰기가 완료 될 때까지 기다립니다. 업데이트는 약 5분의 시간이 걸립니다. 저장 중 HUSKYLENS의 디스플레이는 꺼지고, 업데이트가 완료될때까지 HUSKYLENS와 USB 연결을 분리하시면 안됩니다.

펌웨어 업데이트 완료

펌웨어 업데이트가 완료되면 아래와 같이 완료 메시지가 표시되고 HUSKYLENS가 다시 시작합니다. "OK"를 클릭 한 후 K-Flash.exe를 종료합니다.

펌웨어 업데이트 확인

펌웨어 업그레이드된 HUSKYLENS에서 펌웨어 버전을 확인하려면 "General Settings"를 선택한 후, 메뉴를 오른쪽으로 이동합니다. "Version x.x.xStable '처럼 버전이 표시되므로 업데이트된 펌웨어 버전과 일치하는지 확인 하실수 있습니다.

댓글을 달아 주세요

Arduino : 2.4인치 터치 스크린 제어 ( ILI9341, UTouch )

OS/Arduino 2019. 8. 30. 22:07 Posted by 파란크리스마스

출처

Arduino : 2.4인치 터치 스크린 제어 ( ILI9341, UTouch )

스크린 핀연결

  • RESET 7
  • DC    9
  • CS   10
  • MOSI 11
  • CLK  13

터치 핀연결

  • CLK 6
  • CS 5
  • DIN 4
  • DO 3
  • IRQ 2

터치 테스트

#include <UTouch.h>

// Initialize touchscreen
#define PIN_CLK 6
#define PIN_CS 5
#define PIN_DIN 4
#define PIN_DO 3
#define PIN_IRQ 2

UTouch  myTouch(PIN_CLK, PIN_CS, PIN_DIN, PIN_DO, PIN_IRQ);

void setup() {
  Serial.begin(9600);
  // put your setup code here, to run once:
  myTouch.InitTouch();
  myTouch.setPrecision(PREC_HI);
}

void loop() {
  // put your main code here, to run repeatedly:
  long x, y;

  while (myTouch.dataAvailable() == true) {
    myTouch.read();
    x = myTouch.getX();
    y = myTouch.getY();
    if ((x!=-1) and (y!=-1)) {
      Serial.print("X = "); Serial.print(x);
      Serial.print("\tY = "); Serial.println(y);
    }
  }
}

텍스트 및 그래픽 함수 테스트

/*
 TFT LCD - TFT Simple driving
 modified on 21 Feb 2019
 by Saeed Hosseini
 https://electropeak.com/learn/
*/
#include "SPI.h"
#include "Adafruit_GFX.h"
#include "Adafruit_ILI9341.h"

#define TFT_RESET 7
#define TFT_DC    9
#define TFT_CS   10
#define TFT_MOSI 11
#define TFT_CLK  13

#define BLACK       0x0000
#define BLUE        0x001F
#define RED         0xF800
#define GREEN       0x07E0
#define CYAN        0x07FF
#define MAGENTA     0xF81F
#define YELLOW      0xFFE0
#define WHITE       0xFFFF
#define ORANGE      0xFD20
#define GREENYELLOW 0xAFE5
#define NAVY        0x000F
#define DARKGREEN   0x03E0
#define DARKCYAN    0x03EF
#define MAROON      0x7800
#define PURPLE      0x780F
#define OLIVE       0x7BE0
#define LIGHTGREY   0xC618
#define DARKGREY    0x7BEF

Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_MOSI, TFT_CLK, TFT_RESET);

void setup() {
  Serial.begin(9600);
  Serial.println(F("TFT LCD test"));
#ifdef USE_ADAFRUIT_SHIELD_PINOUT
  Serial.println(F("Using Adafruit 2.4\" TFT Arduino Shield Pinout"));
#else
  Serial.println(F("Using Adafruit 2.4\" TFT Breakout Board Pinout"));
#endif
  Serial.print("TFT size is ");
  Serial.print(tft.width());
  Serial.print("x");
  Serial.println(tft.height());

  tft.begin();
  Serial.println(F("Benchmark                Time (microseconds)"));
  Serial.print(F("Screen fill              "));
  Serial.println(FillScreen());
  delay(500);

  tft.setTextColor(YELLOW);
  tft.setCursor(70, 180);
  tft.setTextSize(1);
  tft.println("Electropeak");
  delay(200);

  tft.fillScreen(PURPLE);
  tft.setCursor(50, 170);
  tft.setTextSize(2);
  tft.println("Electropeak");
  delay(200);

  tft.fillScreen(PURPLE);
  tft.setCursor(20, 160);
  tft.setTextSize(3);
  tft.println("Electropeak");
  delay(500);

  tft.fillScreen(PURPLE);
  for (int rotation = 0; rotation < 4; rotation++) {
    tft.setRotation(rotation);
    tft.setCursor(0, 0);
    tft.setTextSize(3);
    tft.println("Electropeak");
    delay(700);
  }
  delay(500);

  Serial.print(F("Rectangles (filled) "));
  Serial.println(testFilledRects(YELLOW, MAGENTA)); delay(500);
}

void loop() {
}

unsigned long FillScreen() {
  unsigned long start = micros();
  tft.fillScreen(RED);
  delay(500);
  tft.fillScreen(GREEN);
  delay(500);
  tft.fillScreen(BLUE);
  delay(500);
  tft.fillScreen(WHITE);
  delay(500);
  tft.fillScreen(MAGENTA);
  delay(500);
  tft.fillScreen(PURPLE);
  delay(500);
  return micros() - start;
}

unsigned long testFilledRects(uint16_t color1, uint16_t color2) {
  unsigned long start, t = 0;
  int n, i, i2, cx = tft.width() / 2 - 1, cy = tft.height() / 2 - 1;
  tft.fillScreen(BLACK);
  n = min(tft.width(), tft.height());
  for (i = n; i > 0; i -= 6) {
   i2    = i / 2;
   start = micros();
   tft.fillRect(cx - i2, cy - i2, i, i, color1);
   t += micros() - start;
   // Outlines are not included in timing results
   tft.drawRect(cx - i2, cy - i2, i, i, color2);
 }
 return t;
}

터치스크린을 이용한 그림판

#include "SPI.h"
#include "Adafruit_GFX.h"
#include "Adafruit_ILI9341.h"
#include <UTouch.h>

#define PIN_CLK 6
#define PIN_CS 5
#define PIN_DIN 4
#define PIN_DO 3
#define PIN_IRQ 2
#define TS_MINX 10
#define TS_MINY 0
#define TS_MAXX 380
#define TS_MAXY 239
UTouch  ts(PIN_CLK, PIN_CS, PIN_DIN, PIN_DO, PIN_IRQ);

#define TFT_RESET 7
#define TFT_DC    9
#define TFT_CS   10
#define TFT_MOSI 11
#define TFT_CLK  13
#define  BLACK   0x0000
#define BLUE    0x001F
#define RED     0xF800
#define GREEN   0x07E0
#define CYAN    0x07FF
#define MAGENTA 0xF81F
#define YELLOW  0xFFE0
#define WHITE   0xFFFF
Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_MOSI, TFT_CLK, TFT_RESET);

#define BOXSIZE 40
#define PENRADIUS 3

int oldcolor, currentcolor;

void setup(void) {
  Serial.begin(9600);
  Serial.println(F("Paint!"));

  ts.InitTouch(LANDSCAPE); // PORTRAIT, LANDSCAPE
  ts.setPrecision(PREC_HI); // PREC_LOW, PREC_MEDIUM, PREC_HI, PREC_EXTREME

  tft.begin();
  tft.fillScreen(BLACK);

  tft.fillRect(0, 0, BOXSIZE, BOXSIZE, RED);
  tft.fillRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, YELLOW);
  tft.fillRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, GREEN);
  tft.fillRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, CYAN);
  tft.fillRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, BLUE);
  tft.fillRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, MAGENTA);
  tft.drawRect(0, 0, BOXSIZE, BOXSIZE, WHITE);

  currentcolor = RED;
}

#define MINPRESSURE 10
#define MAXPRESSURE 1000

void loop() {
  long px, py;
  while (ts.dataAvailable() == true) {
    ts.read();
    px = ts.getX();
    py = TS_MAXY - 10 - ts.getY();
    if ((px!=-1) and (py!=-1)) {
      Serial.print("X = "); Serial.print(px);
      Serial.print("\tY = "); Serial.println(py);
    }

    if (py < (TS_MINY-5)) {
      Serial.println("erase");
      tft.fillRect(0, BOXSIZE, tft.width(), tft.height()-BOXSIZE, BLACK);
    }
    px = map(px, TS_MINX, TS_MAXX, tft.width(), 0);
    py = map(py, TS_MINY, TS_MAXY, tft.height(), 0);
    if (py < BOXSIZE) {
      oldcolor = currentcolor;
      if (px < BOXSIZE) {
        currentcolor = RED;
        tft.drawRect(0, 0, BOXSIZE, BOXSIZE, WHITE);
      } else if (px < BOXSIZE*2) {
        currentcolor = YELLOW;
        tft.drawRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, WHITE);
      } else if (px < BOXSIZE*3) {
        currentcolor = GREEN;
        tft.drawRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, WHITE);
      } else if (px < BOXSIZE*4) {
        currentcolor = CYAN;
        tft.drawRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, WHITE);
      } else if (px < BOXSIZE*5) {
        currentcolor = BLUE;
        tft.drawRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, WHITE);
      } else if (px < BOXSIZE*6) {
        currentcolor = MAGENTA;
        tft.drawRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, WHITE);
      }
      if (oldcolor != currentcolor) {
        if (oldcolor == RED)
          tft.fillRect(0, 0, BOXSIZE, BOXSIZE, RED);
        if (oldcolor == YELLOW)
          tft.fillRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, YELLOW);
        if (oldcolor == GREEN)
          tft.fillRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, GREEN);
        if (oldcolor == CYAN)
          tft.fillRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, CYAN);
        if (oldcolor == BLUE)
          tft.fillRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, BLUE);
        if (oldcolor == MAGENTA)
          tft.fillRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, MAGENTA);
      }
    }

    if (((py-PENRADIUS) > BOXSIZE) && ((py+PENRADIUS) < tft.height())) {
      tft.fillCircle(px, py, PENRADIUS, currentcolor);
    }
  }
}

실행 영상

댓글을 달아 주세요

Arduino : 스탭모터(28BYJ48 ​+ ULN2003) 제어

OS/Arduino 2019. 8. 18. 15:23 Posted by 파란크리스마스

출처

소스

/*Example sketch to control a 28BYJ-48 stepper motor with ULN2003 driver board, and Arduino UNO. More info: https://www.makerguides.com */
// Include the Arduino Stepper Library:
#include <Stepper.h>
// Number of steps per rotation:
const int stepsPerRevolution = 2048;
//Wiring:
// Pin 8 to IN1 on the ULN2003 driver
// Pin 9 to IN2 on the ULN2003 driver
// Pin 10 to IN3 on the ULN2003 driver
// Pin 11 to IN4 on the ULN2003 driver
// Create stepper object called 'myStepper', note the pin order:
Stepper myStepper = Stepper(stepsPerRevolution, 8, 10, 9, 11);
void setup()
{
  // Set the speed to 5 rpm:
  myStepper.setSpeed(5);
  // Initialize the serial port:
  Serial.begin(9600);
}
void loop()
{
  // Step one revolution in one direction:
  Serial.println("clockwise");
  myStepper.step(stepsPerRevolution);
  delay(500);
  // Step one revolution in the other direction:
  Serial.println("counterclockwise");
  myStepper.step(-stepsPerRevolution);
  delay(500);
}

실행 영상

댓글을 달아 주세요

Arduino Uno - ESP8266 ESP-01 Serial Wireless WIFI Module

OS/Arduino 2018. 2. 23. 17:12 Posted by 파란크리스마스

출처 : GitHub - bportaluri/WiFiEsp: Arduino WiFi library for ESP8266 modules
GitHub - Diaoul/arduino-ESP8266: An Arduino library to manage the ESP8266.

WiFiEsp / ConnectWPA,ino

출처 : GitHub - bportaluri/WiFiEsp: Arduino WiFi library for ESP8266 modules

/*
 WiFiEsp example: ConnectWPA

 This example connects to an encrypted WiFi network using an ESP8266 module.
 Then it prints the  MAC address of the WiFi shield, the IP address obtained
 and other network details.

 For more details see: http://yaab-arduino.blogspot.com/p/wifiesp-example-connect.html
*/

#include "WiFiEsp.h"

// Emulate Serial1 on pins 6/7 if not present
#ifndef HAVE_HWSERIAL1
#include "SoftwareSerial.h"
SoftwareSerial Serial1(6, 7); // RX, TX
#endif

char ssid[] = "Twim";            // your network SSID (name)
char pass[] = "12345678";        // your network password
int status = WL_IDLE_STATUS;     // the Wifi radio's status

void setup()
{
  // initialize serial for debugging
  Serial.begin(115200);
  // initialize serial for ESP module
  Serial1.begin(115200);
  // initialize ESP module
  WiFi.init(&Serial1);

  // check for the presence of the shield
  if (WiFi.status() == WL_NO_SHIELD) {
    Serial.println("WiFi shield not present");
    // don't continue
    while (true);
  }

  // attempt to connect to WiFi network
  while ( status != WL_CONNECTED) {
    Serial.print("Attempting to connect to WPA SSID: ");
    Serial.println(ssid);
    // Connect to WPA/WPA2 network
    status = WiFi.begin(ssid, pass);
  }

  Serial.println("You're connected to the network");
}

void loop()
{
  // print the network connection information every 10 seconds
  Serial.println();
  printCurrentNet();
  printWifiData();

  delay(10000);
}

void printWifiData()
{
  // print your WiFi shield's IP address
  IPAddress ip = WiFi.localIP();
  Serial.print("IP Address: ");
  Serial.println(ip);

  // print your MAC address
  byte mac[6];
  WiFi.macAddress(mac);
  char buf[20];
  sprintf(buf, "%02X:%02X:%02X:%02X:%02X:%02X", mac[5], mac[4], mac[3], mac[2], mac[1], mac[0]);
  Serial.print("MAC address: ");
  Serial.println(buf);
}

void printCurrentNet()
{
  // print the SSID of the network you're attached to
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());

  // print the MAC address of the router you're attached to
  byte bssid[6];
  WiFi.BSSID(bssid);
  char buf[20];
  sprintf(buf, "%02X:%02X:%02X:%02X:%02X:%02X", bssid[5], bssid[4], bssid[3], bssid[2], bssid[1], bssid[0]);
  Serial.print("BSSID: ");
  Serial.println(buf);

  // print the received signal strength
  long rssi = WiFi.RSSI();
  Serial.print("Signal strength (RSSI): ");
  Serial.println(rssi);
}

arduino-ESP8266 / Complete.ino

출처 : GitHub - Diaoul/arduino-ESP8266: An Arduino library to manage the ESP8266.

#include <SoftwareSerial.h>

#include "ESP8266.h"

SoftwareSerial esp8266Serial = SoftwareSerial(6, 7); // RX, TX
ESP8266 wifi = ESP8266(esp8266Serial);

void setup()
{
    Serial.begin(115200);

    // ESP8266
    esp8266Serial.begin(115200);
    wifi.begin();
    wifi.setTimeout(1000);

    /****************************************/
    /******       Basic commands       ******/
    /****************************************/
    // test
    /*Serial.print("test: ");
    Serial.println(getStatus(wifi.test()));*/

    // restart
    /*Serial.print("restart: ");
    Serial.println(getStatus(wifi.restart()));*/

    // getVersion
    char version[16] = {};
    Serial.print("getVersion: ");
    Serial.print(getStatus(wifi.getVersion(version, 16)));
    Serial.print(" : ");
    Serial.println(version);

    // deepSleep
    /*Serial.print("deepSleep: ");
    Serial.println(wifi.deepSleep(5000));*/

    // setBaudrate
    /*Serial.print("setBaudrate: ");
    Serial.println(wifi.setBaudrate(9600));*/

    /****************************************/
    /******        WiFi commands       ******/
    /****************************************/
    // setWifiMode
    Serial.print("setWifiMode: ");
    Serial.println(getStatus(wifi.setMode(ESP8266_WIFI_ACCESSPOINT)));

    // getWifiMode
    ESP8266WifiMode mode;
    Serial.print("getWifiMode: ");
    Serial.println(getStatus(wifi.getMode(&mode)));

    // joinAP
    /*Serial.print("joinAP: ");
    Serial.println(getStatus(wifi.joinAP("ssid", "password")));*/

    // getAP
    /*char ap[32] = {};
    Serial.print("getAP: ");
    Serial.print(getStatus(wifi.getAP(ap)));
    Serial.print(" : ");
    Serial.println(ap);*/

    // quitAP
    /*Serial.print("quitAP: ");
    Serial.println(getStatus(wifi.quitAP()));*/

    // setAPConfiguration
    Serial.print("setAPConfiguration: ");
    Serial.println(getStatus(wifi.setAPConfiguration("ESP8266", "awesomelib", 10, ESP8266_ENCRYPTION_WPA_WPA2_PSK)));
    wifi.restart();

    // getAPConfiguration
    char ssid[32] = {};
    char password[63] = {};
    uint8_t channel;
    ESP8266Encryption encryption;
    Serial.print("getAPConfiguration: ");
    Serial.print(getStatus(wifi.getAPConfiguration(ssid, password, channel, encryption)));
    Serial.print(" : ");
    Serial.print(ssid);
    Serial.print(" - ");
    Serial.print(password);
    Serial.print(" - ");
    Serial.print(channel);
    Serial.print(" - ");
    Serial.println(encryption);

    // setDHCP
    Serial.print("setDHCP STA: ");
    Serial.println(getStatus(wifi.setDHCP(ESP8266_WIFI_STATION, false)));
    Serial.print("setDHCP AP: ");
    Serial.println(getStatus(wifi.setDHCP(ESP8266_WIFI_ACCESSPOINT, true)));

    // setMAC
    /*byte mac[6] = {0x11, 0x11, 0x11, 0x11, 0x11, 0x11};
    Serial.print("setMAC AP: ");
    Serial.println(getStatus(wifi.setMAC(ESP8266_WIFI_ACCESSPOINT, mac)));*/

    // getMAC
    byte mac[6] = {};
    Serial.print("getMAC STA: ");
    Serial.print(getStatus(wifi.getMAC(ESP8266_WIFI_STATION, mac)));
    Serial.print(" : ");
    for (uint8_t i = 0; i < 6; i++) {
      Serial.print(mac[i], HEX);
      if (i < 5)
        Serial.print(":");
    }
    Serial.println();
    Serial.print("getMAC AP: ");
    Serial.print(getStatus(wifi.getMAC(ESP8266_WIFI_ACCESSPOINT, mac)));
    Serial.print(" : ");
    for (uint8_t i = 0; i < 6; i++) {
      Serial.print(mac[i], HEX);
      if (i < 5)
        Serial.print(":");
    }
    Serial.println();

    // setIP
    /*IPAddress ipAP = IPAddress(10, 0, 4, 1);
    Serial.print("setIP AP: ");
    Serial.print(getStatus(wifi.setIP(ESP8266_WIFI_ACCESSPOINT, ipAP)));
    Serial.print(" : ");
    Serial.println(ipAP);*/

    // getIP
    IPAddress ip;
    Serial.print("getIP STA: ");
    Serial.print(getStatus(wifi.getIP(ESP8266_WIFI_STATION, ip)));
    Serial.print(" : ");
    Serial.println(ip);
    Serial.print("getIP AP: ");
    Serial.print(getStatus(wifi.getIP(ESP8266_WIFI_ACCESSPOINT, ip)));
    Serial.print(" : ");
    Serial.println(ip);

    /****************************************/
    /******       TCP/IP commands      ******/
    /****************************************/
    // connect
    /*Serial.print("connect: ");
    Serial.println(getStatus(wifi.connect(ESP8266_PROTOCOL_TCP, IPAddress(192,168,4,100), 4000)));*/

    // send
    /*Serial.print("send: ");
    Serial.println(getStatus(wifi.send("Hello World\n")));*/

    // close
    /*Serial.print("close: ");
    Serial.println(getStatus(wifi.close()));*/

    // setMultipleConnections
    Serial.print("setMultipleConnections: ");
    Serial.println(getStatus(wifi.setMultipleConnections(true)));

    // getMultipleConnections
    /*bool multipleConnections;
    Serial.print("getMultipleConnections: ");
    Serial.print(getStatus(wifi.getMultipleConnections(multipleConnections)));
    Serial.print(" : ");
    Serial.println(multipleConnections);*/

    // createServer
    Serial.print("createServer: ");
    Serial.println(getStatus(wifi.createServer(4000)));

    // deleteServer
    Serial.print("deleteServer: ");
    Serial.println(getStatus(wifi.deleteServer()));

    // setServerTimeout
    /*Serial.print("setServerTimeout: ");
    Serial.println(getStatus(wifi.setServerTimeout(10)));*/

    // getServerTimeout
    /*unsigned int timeout;
    Serial.print("getServerTimeout: ");
    Serial.print(getStatus(wifi.getServerTimeout(timeout)));
    Serial.print(" : ");
    Serial.println(timeout);*/
}

void loop()
{
    /****************************************/
    /******        WiFi commands       ******/
    /****************************************/
    // getConnectedStations
    /*ESP8266Station stations[5];
    unsigned int stationCount;
    Serial.print("getConnectedStations: ");
    Serial.print(getStatus(wifi.getConnectedStations(stations, stationCount, 5)));
    Serial.print(" : ");
    Serial.println(stationCount);
    for (uint8_t i = 0; i < stationCount; i++) {
      Serial.print(" - ");
      Serial.print(stations[i].ip);
      Serial.print(" - ");
      for (uint8_t j = 0; j < 6; j++) {
        Serial.print(stations[i].mac[j], HEX);
        if (j < 5)
          Serial.print(":");
      }
      Serial.println();
    }
    delay(5000);*/

    /****************************************/
    /******       TCP/IP commands      ******/
    /****************************************/
    // getConnectionStatus
    /*ESP8266ConnectionStatus connectionStatus;
    ESP8266Connection connections[5];
    unsigned int connectionCount;
    Serial.print("getConnectionStatus: ");
    Serial.print(getStatus(wifi.getConnectionStatus(connectionStatus, connections, connectionCount)));
    Serial.print(" : ");
    Serial.println(connectionCount);
    for (int i = 0; i < connectionCount; i++) {
      Serial.print(" - Connection: ");
      Serial.print(connections[i].id);
      Serial.print(" - ");
      Serial.print(getProtocol(connections[i].protocol));
      Serial.print(" - ");
      Serial.print(connections[i].ip);
      Serial.print(":");
      Serial.print(connections[i].port);
      Serial.print(" - ");
      Serial.println(getRole(connections[i].role));
    }
    delay(5000);*/


    // read data
    /*unsigned int id;
    int length;
    int totalRead;
    char buffer[11] = {};

    if ((length = wifi.available()) > 0) {
      id = wifi.getId();
      totalRead = wifi.read(buffer, 10);

      if (length > 0) {
        Serial.print("Received ");
        Serial.print(totalRead);
        Serial.print("/");
        Serial.print(length);
        Serial.print(" bytes from client ");
        Serial.print(id);
        Serial.print(": ");
        Serial.println((char*)buffer);
      }
    }*/
}

String getStatus(bool status)
{
    if (status)
        return "OK";

    return "KO";
}

String getStatus(ESP8266CommandStatus status)
{
    switch (status) {
    case ESP8266_COMMAND_INVALID:
        return "INVALID";
        break;

    case ESP8266_COMMAND_TIMEOUT:
        return "TIMEOUT";
        break;

    case ESP8266_COMMAND_OK:
        return "OK";
        break;

    case ESP8266_COMMAND_NO_CHANGE:
        return "NO CHANGE";
        break;

    case ESP8266_COMMAND_ERROR:
        return "ERROR";
        break;

    case ESP8266_COMMAND_NO_LINK:
        return "NO LINK";
        break;

    case ESP8266_COMMAND_TOO_LONG:
        return "TOO LONG";
        break;

    case ESP8266_COMMAND_FAIL:
        return "FAIL";
        break;

    default:
        return "UNKNOWN COMMAND STATUS";
        break;
    }
}

String getRole(ESP8266Role role)
{
    switch (role) {
    case ESP8266_ROLE_CLIENT:
        return "CLIENT";
        break;

    case ESP8266_ROLE_SERVER:
        return "SERVER";
        break;

    default:
        return "UNKNOWN ROLE";
        break;
    }
}

String getProtocol(ESP8266Protocol protocol)
{
    switch (protocol) {
    case ESP8266_PROTOCOL_TCP:
        return "TCP";
        break;

    case ESP8266_PROTOCOL_UDP:
        return "UDP";
        break;

    default:
        return "UNKNOWN PROTOCOL";
        break;
    }
}

arduino-ESP8266 / HttpRequest.ino

출처 : GitHub - Diaoul/arduino-ESP8266: An Arduino library to manage the ESP8266.
Serial WiFi 모듈 (ESP8266) 활용편 | Hard Copy Arduino

#include <SoftwareSerial.h>

#include "ESP8266.h"

#define SSID "xxxxxxxx"
#define PASS "xxxxxxxx"
#define DST_IP "220.181.111.85" //baidu.com

SoftwareSerial esp8266Serial = SoftwareSerial(6, 7); // RX, TX
ESP8266 wifi = ESP8266(esp8266Serial);

void setup()
{
    Serial.begin(115200);

    // ESP8266
    esp8266Serial.begin(115200);
    wifi.begin();
    wifi.setTimeout(1000);

    /****************************************/
    /******       Basic commands       ******/
    /****************************************/
    // test
    Serial.print("test: ");
    Serial.println(getStatus(wifi.test()));

    // restart
    Serial.print("restart: ");
    Serial.println(getStatus(wifi.restart()));

    // getVersion
    char version[16] = {};
    Serial.print("getVersion: ");
    Serial.print(getStatus(wifi.getVersion(version, 16)));
    Serial.print(" : ");
    Serial.println(version);


    /****************************************/
    /******        WiFi commands       ******/
    /****************************************/
    // joinAP
    Serial.print("joinAP: ");
    Serial.println(getStatus(wifi.joinAP(SSID, PASS)));


    /****************************************/
    /******       TCP/IP commands      ******/
    /****************************************/
    // connect
    Serial.print("connect: ");
    Serial.println(getStatus(wifi.connect(ESP8266_PROTOCOL_TCP, DST_IP, 80)));

    // send
    Serial.print("send: ");
    Serial.println(getStatus(wifi.send("GET / HTTP/1.0\r\n\r\n")));

}

void loop()
{
    /****************************************/
    /******        WiFi commands       ******/
    /****************************************/

    // read data
    unsigned int id;
    int length;
    int totalRead;
    char buffer[300] = {};

    if ((length = wifi.available()) > 0) {
      id = wifi.getId();
      totalRead = wifi.read(buffer, 300);

      if (length > 0) {
        Serial.print("Received ");
        Serial.print(totalRead);
        Serial.print("/");
        Serial.print(length);
        Serial.print(" bytes from client ");
        //Serial.print("from client ");
        Serial.print(id);
        Serial.print(": ");
        Serial.println((char*)buffer);
      }
    }
}

String getStatus(bool status)
{
    if (status)
        return "OK";

    return "KO";
}

댓글을 달아 주세요

Arduino Uno - IR Remote

OS/Arduino 2017. 12. 30. 10:58 Posted by 파란크리스마스

출처 : IR Remote Control Car | How To Make Remote Control Car Using Arduino - MaxPhi
z3t0/Arduino-IRremote: Infrared remote library for Arduino: send and receive infrared signals with multiple protocols

IR Remote 라이브러리

Arduion IDE가 설치된 폴더의 libraries 폴더에서 소스 다운로드

C:\arduino-1.6.5-r5\libraries>git clone https://github.com/z3t0/Arduino-IRremote.git
Cloning into 'Arduino-IRremote'...
remote: Counting objects: 1664, done.
remote: Total 1664 (delta 0), reused 0 (delta 0), pack-reused 1664 eceiving objects: 100% (1664/1664), 972.01 KiB | 419.Receiving objects: 100% (1664/1664), 1.08 MiB | 445.00 KiB/s, done.

Resolving deltas: 100% (916/916), done.

적외선 센서 배선

적외선 센서 소스

/* IRremote:
IRrecvDemo - demonstrates receiving IR codes with IRrecv
An IR detector/demodulator must be connected to the input RECV_PIN.
Version 0.1 July, 2009
Copyright 2009 Ken Shirriff * http://arcfn.com
*/

#include <IRremote.h>

int RECV_PIN = 12;

IRrecv irrecv(RECV_PIN);

decode_results results;

void setup()
{
  Serial.begin(9600);
  irrecv.enableIRIn(); // Start the receiver
}

void loop() {
  if (irrecv.decode(&results)) {
    Serial.println(results.value, HEX);

    irrecv.resume(); // Receive the next value
  }
}

적외선 센서 연동 RC CAR 배선

적외선 센서 연동 RC CAR 소스

#include <IRremote.h>
#include <Ultrasonic.h>
#include <SoftwareSerial.h>

int IR_RECV_PIN = 12;
int rc_car_mode = 2;

IRrecv irrecv(IR_RECV_PIN);
SoftwareSerial btSerial(9, 8); //Connect HC-06. Use your (TX, RX) settings
Ultrasonic ultrasonic(10,11); // (Trig PIN,Echo PIN)

//모터A 컨트롤
int enA = 6;
int IN1 = 7;
int IN2 = 5;

//모터B 컨트롤
int enB = 3;
int IN3 = 4;
int IN4 = 2;

decode_results ir_results;
String receiveStr=""; //받는 문자열
String olfReceiveStr=""; //받는 문자열
#define MOTER_SPEED 255 // MAX 255

void setup()
{
  irrecv.enableIRIn(); // Start the receiver

  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(IN3, OUTPUT);
  pinMode(IN4, OUTPUT);

  Serial.begin(9600);
  Serial.println("Hello!");

  btSerial.begin(9600);  // set the data rate for the BT port
}

void loop()
{
  analogWrite(enA, MOTER_SPEED);
  analogWrite(enB, MOTER_SPEED);

  int value = ultrasonic.Ranging(CM);
  Serial.print(value); // CM or INC
  Serial.print(" cm / " );

  boolean is_forward = true;
  if (value <= 15) {
    is_forward = false;
  }

  if (rc_car_mode > 2) {
    rc_car_mode = 1;
  }

  switch (rc_car_mode) {
    case 1:
      loop_bluetooth(is_forward);
      break;
    case 2:
      loop_irrecv(is_forward);
      break;
  }
  Serial.print("\n");
}

void loop_irrecv(boolean is_forward) {
  receiveStr = "";
  if (irrecv.decode(&ir_results)) {
    Serial.print(ir_results.value, HEX);
    switch(ir_results.value)
    {
      case 0xFF629D:
        Serial.print(" / ch"); // ch
        receiveStr = "C";
        break;
      case 0xFF18E7:
        Serial.print(" / Forward"); // Button 2
        receiveStr = "F";
        break;
      case 0xFF10EF:
        Serial.print(" / Left"); // Button 4
        receiveStr = "L";
        break;
      case 0xFF38C7:
        Serial.print(" / Stop"); // Button 5
        receiveStr = "S";
        break;
      case 0xFF5AA5:
        Serial.print(" / Right"); // Button 6
        receiveStr = "R";
        break;
      case 0xFF4AB5:
        Serial.print(" / Back"); // Button 8
        receiveStr = "B";
        break;
    }
    irrecv.resume(); // Receive the next value

    loop_moter_command(is_forward, receiveStr);
  }
}

void loop_bluetooth(boolean is_forward) {
  // put your main code here, to run repeatedly:
  receiveStr="";
  while(btSerial.available())  //mySerial에 전송된 값이 있으면
  {
    char myChar = (char)btSerial.read();  //mySerial int 값을 char 형식으로 변환
    receiveStr+=myChar;   //수신되는 문자를 receiveStr에 모두 붙임 (1바이트씩 전송되는 것을 연결)
    delay(5);           //수신 문자열 끊김 방지
  }

  loop_moter_command(is_forward, receiveStr);
}

void loop_moter_command(boolean is_forward, String receiveStr) {
  if (receiveStr.length() > 0) {
    Serial.print(receiveStr);
    if (receiveStr == "C") {
      rc_car_mode++;
    } else if (receiveStr == "F") {
      if (is_forward) {
        bothMotorStart(); // 전진
      } else {
        stopAllMotor();
      }
    } else if (receiveStr == "S") {
      stopAllMotor();
    } else if (receiveStr == "R") {
      turnRight(); // 오른쪽으로 턴
    } else if (receiveStr == "L") {
      turnLeft(); // 왼쪽으로 턴
    } else if (receiveStr == "B") {
      bothMotorBack(); // 후진
    }
    olfReceiveStr = receiveStr;
  } else if (!is_forward && olfReceiveStr == "F") {
    stopAllMotor();
  }
}

//모터A,B 정회전
void bothMotorStart()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A,B 역회전
void bothMotorBack()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A,B Stop
void stopAllMotor()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B 정회전
void turnLeft()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 정회전, 모터B 역회전
void turnRight()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A 정회전, 모터B Stop
void motorA_Rotation()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 정회전
void motorB_Rotation()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B Stop
void motorA_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 역회전
void motorB_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

댓글을 달아 주세요

Arduino Uno - HC-SR04 / RC CAR 충돌 방지

OS/Arduino 2017. 12. 29. 23:25 Posted by 파란크리스마스

출처 : 블루투스 HC-06 슬레이브 모듈 아두이노 소스 + 안드로이드 앱 소스 | Hard Copy Arduino

HC-SR04 센서 배선

HC-SR04 센서 소스

#include <Ultrasonic.h>

Ultrasonic ultrasonic(10,11); // (Trig PIN,Echo PIN)

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);
}

void loop() {
  // put your main code here, to run repeatedly:
  Serial.print(ultrasonic.Ranging(CM)); // CM or INC
  Serial.println(" cm" );
  delay(100);
}

HC-SR04 센서 연동 RC CAR 배선

HC-SR04 센서 연동 RC CAR 소스

#include <Ultrasonic.h>
#include <SoftwareSerial.h>

SoftwareSerial btSerial(9, 8); //Connect HC-06. Use your (TX, RX) settings
Ultrasonic ultrasonic(10,11); // (Trig PIN,Echo PIN)

//모터A 컨트롤
int enA = 6;
int IN1 = 7;
int IN2 = 5;

//모터B 컨트롤
int enB = 3;
int IN3 = 4;
int IN4 = 2;

String receiveStr=""; //받는 문자열
String olfReceiveStr=""; //받는 문자열
#define MOTER_SPEED 255 // MAX 255

void setup()
{
  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(IN1,OUTPUT);
  pinMode(IN2,OUTPUT);
  pinMode(IN3,OUTPUT);
  pinMode(IN4,OUTPUT);

  Serial.begin(9600);
  Serial.println("Hello!");

  btSerial.begin(9600);  // set the data rate for the BT port
}

void loop()
{
  analogWrite(enA, MOTER_SPEED);
  analogWrite(enB, MOTER_SPEED);

  int value = ultrasonic.Ranging(CM);
  Serial.print(value); // CM or INC
  Serial.print(" cm / " );

  if (value <= 15) {
    //stopAllMotor();
    loop_bluetooth(false);
  } else {
    loop_bluetooth(true);
    //loop_line_tracer();
  }

  Serial.print("\n");
}

void loop_bluetooth(boolean is_forward) {
  // put your main code here, to run repeatedly:
  receiveStr="";
  while(btSerial.available())  //mySerial에 전송된 값이 있으면
  {
    char myChar = (char)btSerial.read();  //mySerial int 값을 char 형식으로 변환
    receiveStr+=myChar;   //수신되는 문자를 receiveStr에 모두 붙임 (1바이트씩 전송되는 것을 연결)
    delay(5);           //수신 문자열 끊김 방지
  }

  if (receiveStr.length() > 0) {
    Serial.print(receiveStr);
    if (receiveStr == "F") {
      if (is_forward) {
        bothMotorStart(); // 전진
      } else {
        stopAllMotor();
      }
    } else if (receiveStr == "S") {
      stopAllMotor();
    } else if (receiveStr == "R") {
      turnRight(); // 오른쪽으로 턴
    } else if (receiveStr == "L") {
      turnLeft(); // 왼쪽으로 턴
    } else if (receiveStr == "B") {
      bothMotorBack(); // 후진
    }
    olfReceiveStr = receiveStr;
  } else if (!is_forward && olfReceiveStr == "F") {
    stopAllMotor();
  }
}

//모터A,B 정회전
void bothMotorStart()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A,B 역회전
void bothMotorBack()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A,B Stop
void stopAllMotor()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B 정회전
void turnLeft()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 정회전, 모터B 역회전
void turnRight()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A 정회전, 모터B Stop
void motorA_Rotation()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 정회전
void motorB_Rotation()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B Stop
void motorA_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 역회전
void motorB_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

댓글을 달아 주세요

Arduino Uno - HC-06 / 블루투스 연동 RC CAR

OS/Arduino 2017. 12. 29. 21:25 Posted by 파란크리스마스

출처 : 블루투스 HC-06 슬레이브 모듈 아두이노 소스 + 안드로이드 앱 소스 | Hard Copy Arduino

HC-06 배선

HC-06 제어 소스

#include <SoftwareSerial.h>

SoftwareSerial BTSerial(9, 8); //Connect HC-06. Use your (TX, RX) settings

void setup()
{
  Serial.begin(9600);
  Serial.println("Hello!");

  BTSerial.begin(9600);  // set the data rate for the BT port
}

void loop()
{
  // BT –> Data –> Serial
  if (BTSerial.available()) {
    Serial.write(BTSerial.read());
  }
  // Serial –> Data –> BT
  if (Serial.available()) {
    BTSerial.write(Serial.read());
  }
}

블루투스(HC-06) 연동 RC CAR 배선

블루투스(HC-06) 연동 RC CAR 소스

#include <SoftwareSerial.h>

SoftwareSerial btSerial(9, 8); //Connect HC-06. Use your (TX, RX) settings

//모터A 컨트롤
int enA = 6;
int IN1 = 7;
int IN2 = 5;

//모터B 컨트롤
int enB = 3;
int IN3 = 4;
int IN4 = 2;

String receiveStr=""; //받는 문자열
#define MOTER_SPEED 255 // MAX 255

void setup()
{
  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(IN1,OUTPUT);
  pinMode(IN2,OUTPUT);
  pinMode(IN3,OUTPUT);
  pinMode(IN4,OUTPUT);

  Serial.begin(9600);
  Serial.println("Hello!");

  btSerial.begin(9600);  // set the data rate for the BT port
}

void loop()
{
  analogWrite(enA, MOTER_SPEED);
  analogWrite(enB, MOTER_SPEED);

  // put your main code here, to run repeatedly:
  receiveStr="";
  while(btSerial.available())  //mySerial에 전송된 값이 있으면
  {
    char myChar = (char)btSerial.read();  //mySerial int 값을 char 형식으로 변환
    receiveStr+=myChar;   //수신되는 문자를 receiveStr에 모두 붙임 (1바이트씩 전송되는 것을 연결)
    delay(5);           //수신 문자열 끊김 방지
  }

  if (receiveStr.length() > 0) {
    Serial.println(receiveStr);
    if (receiveStr == "F") {
      bothMotorStart(); // 전진
    } else if (receiveStr == "S") {
      stopAllMotor();
    } else if (receiveStr == "R") {
      turnRight(); // 오른쪽으로 턴
    } else if (receiveStr == "L") {
      turnLeft(); // 왼쪽으로 턴
    } else if (receiveStr == "B") {
      bothMotorBack(); // 후진
    }
  }
}


//모터A,B 정회전
void bothMotorStart()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A,B 역회전
void bothMotorBack()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A,B Stop
void stopAllMotor()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B 정회전
void turnLeft()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 정회전, 모터B 역회전
void turnRight()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A 정회전, 모터B Stop
void motorA_Rotation()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 정회전
void motorB_Rotation()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B Stop
void motorA_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 역회전
void motorB_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

댓글을 달아 주세요

Arduino Uno - L298N

OS/Arduino 2017. 12. 24. 02:44 Posted by 파란크리스마스

출처 : Tutorial - L298N Dual Motor Controller Module 2A and Arduino - Tronixlabs Australia

배선

L298N 스펙

  1. DC motor 1 "+" or stepper motor A+
  2. DC motor 1 "-" or stepper motor A-
  3. 12V jumper - remove this if using a supply voltage greater than 12V DC. This enables power to the onboard 5V regulator
  4. Connect your motor supply voltage here, maximum of 35V DC. Remove 12V jumper if >12V DC
  5. GND
  6. 5V output if 12V jumper in place, ideal for powering your Arduino (etc)
  7. DC motor 1 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
  8. IN1
  9. IN2
  10. IN3
  11. IN4
  12. DC motor 2 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.
  13. DC motor 2 "+" or stepper motor B+
  14. DC motor 2 "-" or stepper motor B-

L298N 제어 소스

//모터A 컨트롤
int enA = 6;
int IN1 = 7;
int IN2 = 5;

//모터B 컨트롤
int enB = 3;
int IN3 = 4;
int IN4 = 2;

#define MOTER_SPEED 255 // MAX 255

void setup() {
  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(IN1,OUTPUT);
  pinMode(IN2,OUTPUT);
  pinMode(IN3,OUTPUT);
  pinMode(IN4,OUTPUT);
}

void loop() {
  analogWrite(enA, MOTER_SPEED);
  analogWrite(enB, MOTER_SPEED);

  /*
  digitalWrite(enA,HIGH);
  digitalWrite(enB,HIGH);
  */
  bothMotorStart(); // 전진
  delay(3000);
  turnLeft(); // 왼쪽으로 턴
  delay(3000);
  turnRight(); // 오른쪽으로 턴
  delay(3000);
  motorA_Rotation(); // 왼쪽만 정방향
  delay(3000);
  motorB_Rotation(); // 오른쪽만 정방향
  delay(3000);
  motorA_Reverse(); // 왼쪽만 역방향
  delay(3000);
  motorB_Reverse(); // 오른쪽만 역방향
  delay(3000);
  stopAllMotor(); // 정지
  delay(3000);
}

//모터A,B 정회전
void bothMotorStart()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A,B Stop
void stopAllMotor()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B 정회전
void turnLeft()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 정회전, 모터B 역회전
void turnRight()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A 정회전, 모터B Stop
void motorA_Rotation()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 정회전
void motorB_Rotation()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B Stop
void motorA_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 역회전
void motorB_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

댓글을 달아 주세요

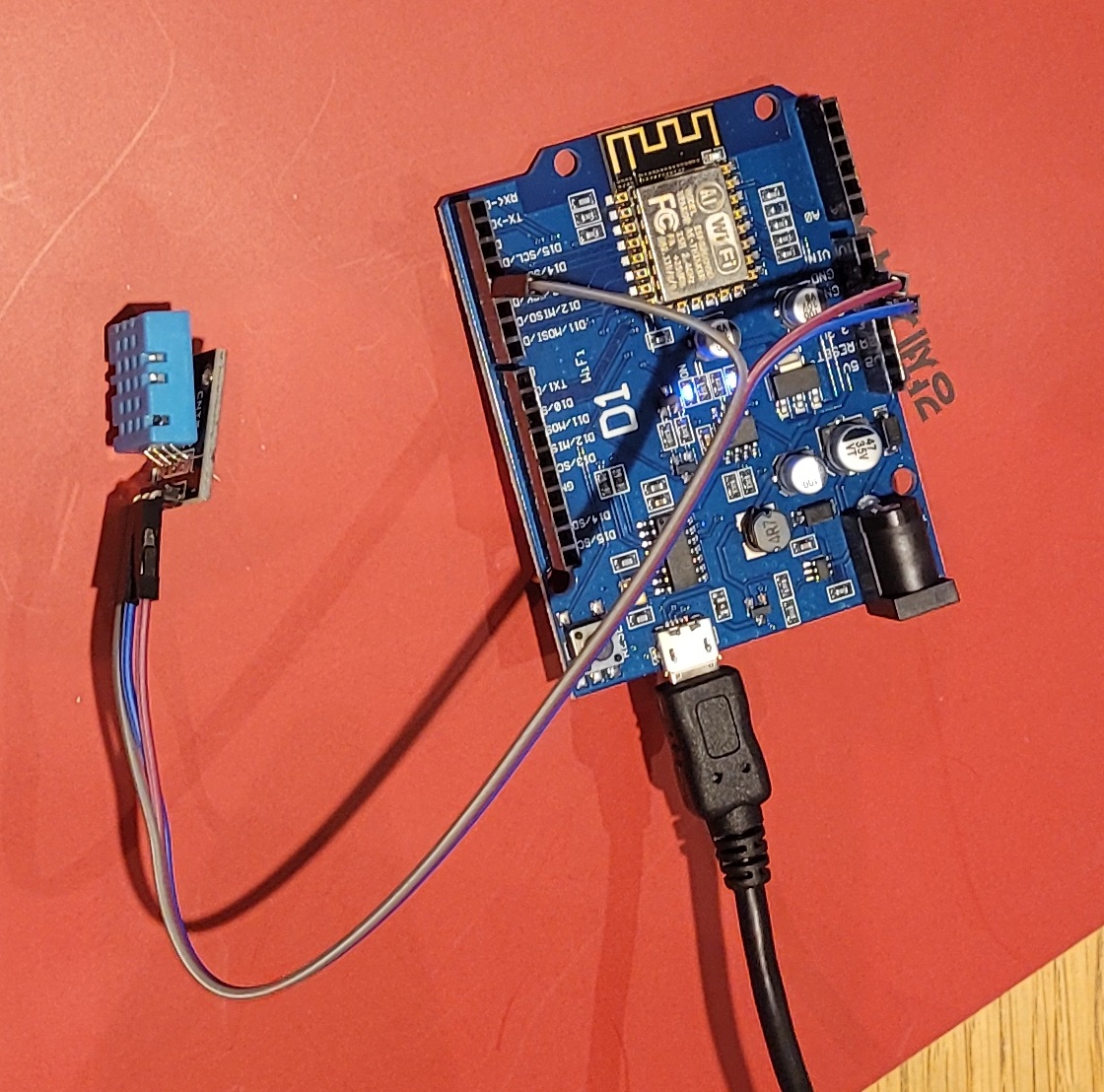

WeMos - D1

OS/Arduino 2017. 12. 10. 00:43 Posted by 파란크리스마스

출처 : 아두이노 WeMos 환경 셋팅 및 기본예제 | 프로젝트 | 메이크위드
CodeBlog: ESP8266, WeMos D1 R1, D1 R2 and D1 Mini pins

아두이노 IDE에 보드 추가하기

COM 포트가 추가된 것을 확인

메뉴 [파일] -> [환경설정] 선택

[환경설정]창에서 Additional Board Manager URLs 항목 설정

보드관련 정보가 있는 URL를 http://arduino.esp8266.com/stable/package_esp8266com_index.json 붙여넣기

메뉴 [도구] -> [보드] -> [Boards Manager...] 선택

[Boards Manager] 창에서 esp8266 검색하고, [Install] 버튼 석택

메뉴 [도구]에서 보드와 포트 선택

LED 켜기

// LED가 연결된 PIN번호
int led = D15;

// 초기화
void setup() {
  pinMode(led, OUTPUT);
}

// 무한 반복
void loop() {
  digitalWrite(led, HIGH); // LED 켜기
  delay(1000); // 1초 대기
  digitalWrite(led, LOW); // LED 끄기
  delay(1000); // 1초 대기
}

PWM 예제

아두이노에서는 analogWrite 함수를 통해서 이러한 PWM 출력을 제공하는데, analogWrite 함수의 인자 범위는 아두이노 우노 R3의 경우 0~255까지의 정수를 사용하지만, D1의 경우 0~1023까지의 정수를 사용한다.

// LED가 연결된 PIN번호
int ledPin = D6;

// 초기화
void setup() {
  // 출력 모드 설정
  pinMode(ledPin, OUTPUT);   // sets the pin as output
}

// 무한 반복
void loop() {
  // 25 단위로 반복 / PWM 번위 0~1023
  for(int angle = 0; angle < 1023; angle=angle+5) {
    // PWM 출력
    analogWrite(ledPin, angle);
    delay(15);
  }
}

SG90 서브모터 제어

[Arduino|아두이노] 서보모터(SG90) 구동하는 방법 (Tower Pro, Micro Servo, B10K, 가변저항) - 젠트의 프로그래밍 세상

#include <Servo.h>

Servo servo;

int servoPin = D3;
int angle = 0; // servo position in degrees

// 초기화
void setup() {
  servo.attach(servoPin);
}

// 무한 반복
void loop() {
  // rotate from 0 to 180degrees
  for(angle = 0; angle < 180; angle++) {
    servo.write(angle);
    delay(15);
  }
}

RC Car - L298N Dual H-Bridge

Reference · ESP8266 Arduino Core

//모터A 컨트롤
int enA = D3;
int IN1=D4;
int IN2=D5;

//모터B 컨트롤
int enB = D10;
int IN3=D8;
int IN4=D9;

#define MOTER_SPEED 1023 // MAX 1023

void setup() {
  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(IN1,OUTPUT);
  pinMode(IN2,OUTPUT);
  pinMode(IN3,OUTPUT);
  pinMode(IN4,OUTPUT);
}

void loop() {

  analogWrite(enA, MOTER_SPEED);
  analogWrite(enB, MOTER_SPEED);

  /*
  digitalWrite(enA,HIGH);
  digitalWrite(enB,HIGH);
  */
  bothMotorStart(); // 전진
  delay(3000);
  turnLeft(); // 왼쪽으로 턴
  delay(3000);
  turnRight(); // 오른쪽으로 턴
  delay(3000);
  motorA_Rotation(); // 오른쪽만 정방향
  delay(3000);
  motorB_Rotation(); // 왼쪽만 정방향
  delay(3000);
  motorA_Reverse(); // 오른쪽만 역방향
  delay(3000);
  motorB_Reverse(); // 왼쪽만 역방향
  delay(3000);
  stopAllMotor(); // 정지
  delay(3000);
}

//모터A,B 정회전
void bothMotorStart()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A,B Stop
void stopAllMotor()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B 정회전
void turnLeft()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 정회전, 모터B 역회전
void turnRight()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}

//모터A 정회전, 모터B Stop
void motorA_Rotation()
{
    digitalWrite(IN1,HIGH);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 정회전
void motorB_Rotation()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,HIGH);
    digitalWrite(IN4,LOW);
}

//모터A 역회전, 모터B Stop
void motorA_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,HIGH);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,LOW);
}

//모터A Stop, 모터B 역회전
void motorB_Reverse()
{
    digitalWrite(IN1,LOW);
    digitalWrite(IN2,LOW);
    digitalWrite(IN3,LOW);
    digitalWrite(IN4,HIGH);
}


댓글을 달아 주세요

rc_car (Keyes L298P - 모터드라이버 쉴드)

OS/Arduino 2017. 10. 4. 03:49 Posted by 파란크리스마스

출처 : 모터드라이버 쉴드 L298P를 이용하는 방법[아두이노 강좌] : 네이버 블로그

#include <SoftwareSerial.h> //시리얼 통신 라이브러리 호출

// Bluetooth 관련
int blueRx=2;   //Rx (받는핀 설정)
int blueTx=3;   //Tx (보내는핀 설정)
SoftwareSerial btSerial(blueTx, blueRx);  //시리얼 통신을 위한 객체선언
String myString=""; //받는 문자열

int E1 = 10;      // 1번(A) 모터 Enable
int E2 = 11;      // 2번(B) 모터 Enable
int M1 = 12;      // 1번(A) 모터 PWM
int M2 = 13;      // 2번(B) 모터 PWM

#define MOTER_SPEED 255
int value;

void setup() {
  pinMode(M1, OUTPUT);      // 출력핀 설정
  pinMode(M2, OUTPUT);
  Serial.begin(9600);
  btSerial.begin(9600); //블루투스 시리얼 개방
}

void loop()
{
  // put your main code here, to run repeatedly:
  myString="";
  while(btSerial.available())  //mySerial에 전송된 값이 있으면
  {
    char myChar = (char)btSerial.read();  //mySerial int 값을 char 형식으로 변환
    myString+=myChar;   //수신되는 문자를 myString에 모두 붙임 (1바이트씩 전송되는 것을 연결)
    delay(5);           //수신 문자열 끊김 방지
  }

  if (myString.length() > 0) {
    Serial.println(myString);
    if (myString == "F") {
      motor_forward();
    } else if (myString == "S") {
      motor_stop();
    } else if (myString == "R") {
      motor_right();
    } else if (myString == "L") {
      motor_left();
    } else if (myString == "B") {
      motor_backwards();
    }
  }
}

void motor_stop() {
  digitalWrite(M1, HIGH);
  digitalWrite(M2, HIGH);
  analogWrite(E1, 0);
  analogWrite(E2, 0);
}

void motor_backwards() {
  motor_backwards(MOTER_SPEED);
}

void motor_backwards(int speed) {
  digitalWrite(M1, HIGH);
  digitalWrite(M2, HIGH);
  analogWrite(E1, speed);
  analogWrite(E2, speed);
}

void motor_forward() {
  motor_forward(MOTER_SPEED);
}

void motor_forward(int speed) {
  digitalWrite(M1, LOW);
  digitalWrite(M2, LOW);
  analogWrite(E1, speed);
  analogWrite(E2, speed);
}

void motor_right() {
  motor_right(MOTER_SPEED);
}

void motor_right(int speed) {
  digitalWrite(M1, HIGH);
  digitalWrite(M2, LOW);
  analogWrite(E1, speed);
  analogWrite(E2, speed);
}

void motor_left() {
  motor_left(MOTER_SPEED);
}

void motor_left(int speed) {
  digitalWrite(M1, LOW);
  digitalWrite(M2, HIGH);
  analogWrite(E1, speed);
  analogWrite(E2, speed);
}

댓글을 달아 주세요

MeArm - 원격 제어 1

OS/Arduino 2017. 10. 3. 02:53 Posted by 파란크리스마스

MeArm - 원격 제어 1

출처 : 실습4. 아두이노 (Arduino)로 가변저항의 저항 값 읽기 : 네이버 블로그 | 메이키스트

MeArm을 원격 제어 하기 위해서 만들기 시작했는데, 아직 하나의 아두이노에서 제어만 가능한 상태입니다.

Raspberry PI를 이용해서 제어 명령을 녹화 했다가 다시 재생하고, 블루투스로 원역으로 제어 하는 부분을 구현 예정인데, 완료되면 다시 글 올리도록 하겠습니다.

최초 아두이노 소스

#include<Servo.h>

Servo myservo1;
Servo myservo2;
Servo myservo3;
int servoPin1 = 10;
int servoPin2 = 3;
int servoPin3 = 5;
int pos = 0;

int analogPin1 = A1;     // potentiometer wiper (middle terminal) connected to analog pin 3
int analogPin2 = A2;
int analogPin3 = A3; // outside leads to ground and +5V
int val1 = 0;           // variable to store the value read
int val1_offset_p = 10;
int val1_p_max = 180;
int val1_offset_s = 0;
int val1_ratio = 5.6266;
long temp1_old = 0;
int val2 = 0;           // variable to store the value read
int val2_offset_p = 90;
int val2_p_max = 170;
int val2_offset_s = 60;
int val2_ratio = 6.3636;
long temp2_old = 0;
int val3 = 0;           // variable to store the value read
int val3_offset_p = 100;
int val3_p_max = 180;
int val3_offset_s = 30;
int val3_ratio = 6;
long temp3_old = 0;

void setup()
{
  Serial.begin(9600);          //  setup serial
  myservo1.attach(servoPin1);
  myservo2.attach(servoPin2);
  myservo3.attach(servoPin3);
}

void loop()
{
  val1 = analogRead(analogPin1);    // read the input pin
  val2 = analogRead(analogPin2);    // read the input pin
  val3 = analogRead(analogPin3);    // read the input pin
  Serial.print(val1);             // debug value
  Serial.print(", ");             // debug value
  Serial.print(val2);             // debug value
  Serial.print(", ");             // debug value
  Serial.print(val3);             // debug value


  // 오른쪽 0 / 왼쪽 180
  // 오른쪽 1023 / 왼쪽 10
  // 1023-10 / 180 = 5.6266
  long temp1 = val1_p_max + val1_offset_s - ((val1 - val1_offset_p) / val1_ratio);
  if (temp1 < val1_offset_s) {
    temp1 = val1_offset_s;
  }
  if (temp1 > val1_p_max) {
    temp1 = val1_p_max;
  }
  Serial.print(", ");             // debug value
  Serial.print(temp1_old);             // debug value

  // 뒤 170 / 앞 : 60
  // 뒤 90 / 왼쪽 790
  // 790-90 / 170-60 = 6.3636
  long temp2 = val2_p_max - ((val2 - val2_offset_p) / val2_ratio);
  if (temp2 < val2_offset_s) {
    temp2 = val2_offset_s;
  }
  if (temp2 > val2_p_max) {
    temp2 = val2_p_max;
  }


  Serial.print(", ");             // debug value
  Serial.print(temp2_old);             // debug value



  // 뒤 30 / 앞 : 180
  // 뒤 1000 / 앞 100
  // 1000-100 / 180-30 = 6
  long temp3 = val3_p_max - ((val3 - val3_offset_p) / val3_ratio);
  if (temp3 < val3_offset_s) {
    temp3 = val3_offset_s;
  }
  if (temp3 > val3_p_max) {
    temp3 = val3_p_max;
  }

  Serial.print(", ");             // debug value
  Serial.print(temp3_old);             // debug value

  if (temp1_old - 25 < temp1  &&  temp1_old + 25 ) {
    myservo1.write(temp1);
    temp1_old = temp1;
  }

  if (temp2_old - 25 < temp2  &&  temp2_old + 25 ) {
    myservo2.write(temp2);
    temp2_old = temp2;
  }

  if (temp3_old - 25 < temp3  &&  temp3_old + 25 ) {
    myservo3.write(temp3);
    temp3_old = temp3;
  }

  Serial.print("\n");             // debug value
  delay(25);
}

개선된 소스 - 첫 번째

#include<Servo.h>

Servo myservo[3];
int servoPin[] = { 10, 3, 5 };

#define ARRAY_LENGTH 3
#define val1_offset_s 0
#define val1_p_max 1
#define val1_offset_p 2
#define val1_ratio 3

int analogPin[] = { A1, A2, A3 }; // outside leads to ground and +5V
double val1_offset[3][4] = {
  { 10, 180, 0, 5.6266 },
  { 90, 170, 60, 6.3636},
  { 100, 180, 30, 6}
};
int val[3];           // variable to store the value read
double temp[] = { 0, 0, 0 };
double temp_old[] = { 0, 0, 0 };
int chcek_int = 3;

void setup() {
  Serial.begin(9600);          //  setup serial
  for (int i=0; i<ARRAY_LENGTH; i++) {
    myservo[i].attach(servoPin[i]);
  }
  //myservo[0].attach(servoPin[0]);
}

void loop() {
  for (int i=0; i<ARRAY_LENGTH; i++) {
    val[i] = analogRead(analogPin[i]);    // read the input pin
    Serial.print(i);
    Serial.print("=");
    Serial.print(val[i]);             // debug value
    Serial.print(",");             // debug value
  }
  Serial.print("|");             // debug value

  // 오른쪽 0 / 왼쪽 180
  // 오른쪽 1023 / 왼쪽 10
  // 1023-10 / 180 = 5.6266
  temp[0] = val1_offset[0][val1_p_max] + val1_offset[0][val1_offset_s] - ((val[0] - val1_offset[0][val1_offset_p]) / val1_offset[0][val1_ratio]);

  // 뒤 170 / 앞 : 60
  // 뒤 90 / 왼쪽 790
  // 790-90 / 170-60 = 6.3636
  temp[1] = val1_offset[1][val1_p_max] - ((val[1] - val1_offset[1][val1_offset_p]) / val1_offset[1][val1_ratio]);

  // 뒤 30 / 앞 : 180
  // 뒤 1000 / 앞 100
  // 1000-100 / 180-30 = 6
  temp[2] = val1_offset[2][val1_p_max] - ((val[2] - val1_offset[2][val1_offset_p]) / val1_offset[2][val1_ratio]);

  for (int i=0; i<ARRAY_LENGTH; i++) {
    if (temp[i] < val1_offset[i][val1_offset_s]) {
      temp[i] = val1_offset[i][val1_offset_s];
    }
    if (temp[i] > val1_offset[i][val1_p_max]) {
      temp[i] = val1_offset[i][val1_p_max];
    }

    Serial.print(temp_old[i]);             // debug value
    Serial.print("/ ");             // debug value
  }

  for (int i=0; i<ARRAY_LENGTH; i++) {
    if (temp_old[i] - chcek_int > temp[i] || temp[i] > temp_old[i] + chcek_int ) {
      myservo[i].write(temp[i]);
      temp_old[i] = temp[i];
      Serial.print(", ");             // debug value
      Serial.print("servo");
      Serial.print(i);
      Serial.print(" set");             // debug value
    }
  }

  Serial.print("\n");             // debug value
  delay(25);
}

개선된 소스 - 두 번째

#include<Servo.h>

Servo myservo[3];
int servoPin[] = { 10, 3, 5 };

#define ARRAY_LENGTH 3
#define resi_s 0
#define resi_e 1
#define servo_s 2
#define servo_e 3
#define arm_ratio 4

int analogPin[] = { A1, A2, A3 }; // outside leads to ground and +5V
double cvalue[3][5] = {
  {  50, 1023,   0, 180, 5.6266 },
  {  90,  790,  60, 170, 6.3636 },
  { 100, 1000,  30, 180, 6 }
};
int val[3];           // variable to store the value read
double temp[] = { 0, 0, 0 };
double temp_old[] = { 0, 0, 0 };
int chcek_int = 3;

void setup() {
  Serial.begin(9600);          //  setup serial
  for (int i=0; i<ARRAY_LENGTH; i++) {
    myservo[i].attach(servoPin[i]);

    // 790-90 / 170-60 = 6.3636
    cvalue[i][arm_ratio] = (cvalue[i][resi_e] - cvalue[i][resi_s])
      / (cvalue[i][servo_e] - cvalue[i][servo_s]);
  }
}

void loop() {
  for (int i=0; i<ARRAY_LENGTH; i++) {
    val[i] = analogRead(analogPin[i]);    // read the input pin
    Serial.print(i);
    Serial.print("=");
    Serial.print(val[i]);             // debug value
    Serial.print(",");             // debug value
  }
  Serial.print("|");             // debug value

  // 오른쪽 0 / 왼쪽 180
  // 오른쪽 1023 / 왼쪽 10
  // 1023-10 / 180 = 5.6266
  temp[0] = cvalue[0][servo_e] + cvalue[0][servo_s] - ((val[0] - cvalue[0][resi_s]) / cvalue[0][arm_ratio]);

  // 뒤 170 / 앞 : 60
  // 뒤 90 / 왼쪽 790
  // 790-90 / 170-60 = 6.3636
  temp[1] = cvalue[1][servo_e] - ((val[1] - cvalue[1][resi_s]) / cvalue[1][arm_ratio]);

  // 뒤 30 / 앞 : 180
  // 뒤 1000 / 앞 100
  // 1000-100 / 180-30 = 6
  temp[2] = cvalue[2][servo_e] - ((val[2] - cvalue[2][servo_s]) / cvalue[2][arm_ratio]);

  for (int i=0; i<ARRAY_LENGTH; i++) {
    if (temp[i] < cvalue[i][servo_s]) {
      temp[i] = cvalue[i][servo_s];
    }
    if (temp[i] > cvalue[i][servo_e]) {
      temp[i] = cvalue[i][servo_e];
    }

    Serial.print(temp_old[i]);             // debug value
    Serial.print("/ ");             // debug value
  }

  for (int i=0; i<ARRAY_LENGTH; i++) {
    if (temp_old[i] - chcek_int > temp[i] || temp[i] > temp_old[i] + chcek_int ) {
      myservo[i].write(temp[i]);
      temp_old[i] = temp[i];
    }
  }

  Serial.print("\n");             // debug value
  delay(25);
}

실행

댓글을 달아 주세요
