Tinker Board 2

출처

• ASUS Tinker Board 2
• ASUS Tinker Board 2 Quick Start Guide
• ASUS Tinker Board 2 : VIP@youyeetoo.com

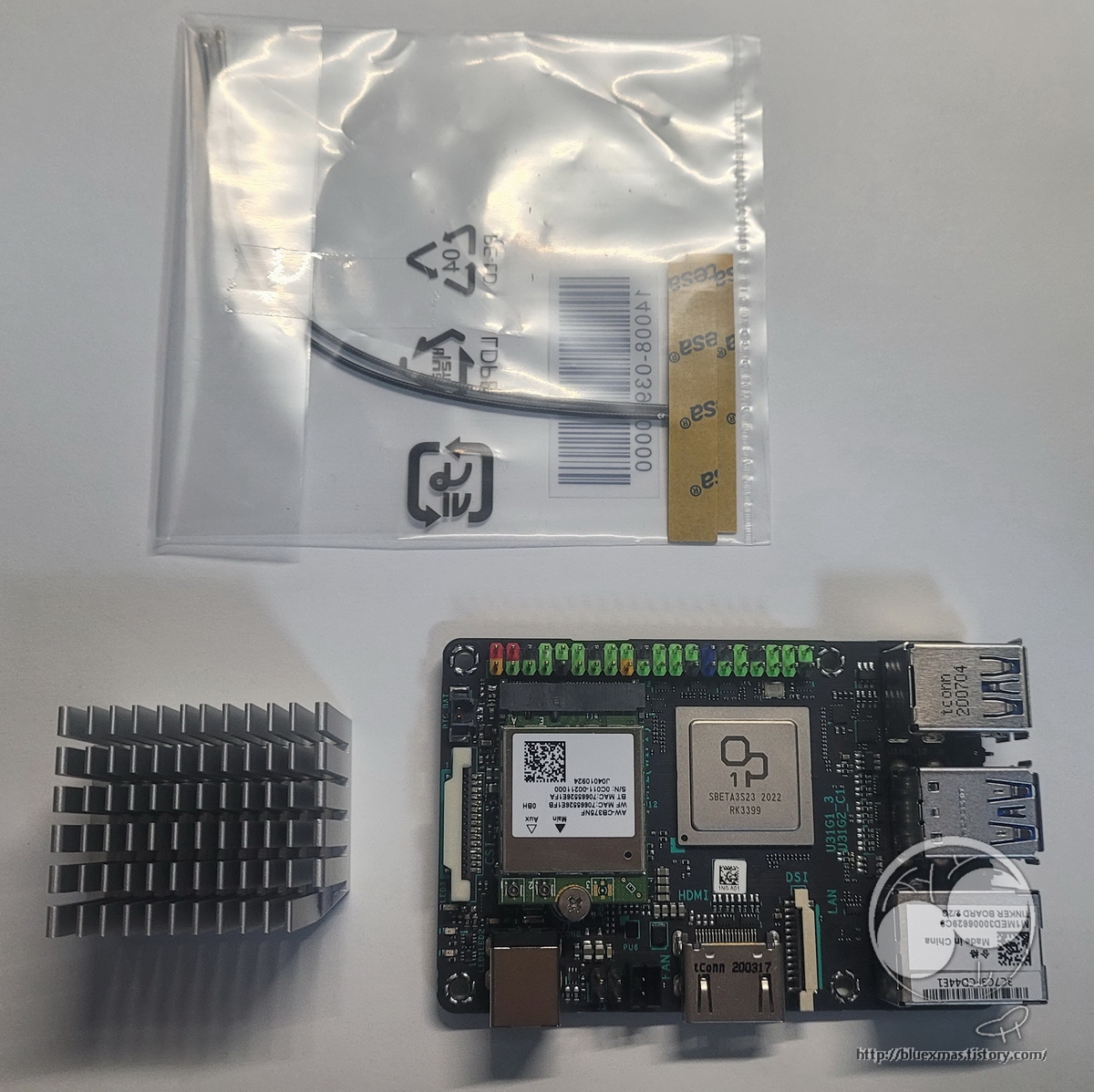

ASUS Tinker Board 2

ASUS Tinker Board 2 스펙 ( 출처 : ASUS Tinker Board 2 : VIP@youyeetoo.com)

기본 사용자, 암호

linaro / linaro

리눅스 정보 확인

CPU 정보 확인

linaro@linaro-alip:~$ cat /proc/cpuinfo
processor       : 0
BogoMIPS        : 48.00
Features        : fp asimd evtstrm aes pmull sha1 sha2 crc32
CPU implementer : 0x41
CPU architecture: 8
CPU variant     : 0x0
CPU part        : 0xd03
CPU revision    : 4

... 생략 ...

processor       : 5
BogoMIPS        : 48.00
Features        : fp asimd evtstrm aes pmull sha1 sha2 crc32
CPU implementer : 0x41
CPU architecture: 8
CPU variant     : 0x0
CPU part        : 0xd08
CPU revision    : 2

Serial          : 1adae4c508fdff72

instruction set architecture (ISA)

linaro@linaro-alip:~$ uname -m
aarch64

커널에 대한 정보

linaro@linaro-alip:~$ uname -a
Linux linaro-alip 4.4.194 #25 SMP Wed Jan 13 07:02:28 UTC 2021 aarch64 GNU/Linux

OS버전에 대한 정보

linaro@linaro-alip:~$ cat /etc/issue
Debian GNU/Linux 9 \n \l

리눅스 배포판 버전 확인

linaro@linaro-alip:~$ grep . /etc/*-release
PRETTY_NAME="Debian GNU/Linux 9 (stretch)"
NAME="Debian GNU/Linux"
VERSION_ID="9"
VERSION="9 (stretch)"
VERSION_CODENAME=stretch
ID=debian
HOME_URL="https://www.debian.org/"
SUPPORT_URL="https://www.debian.org/support"
BUG_REPORT_URL="https://bugs.debian.org/"

논리 코어 수 확인

linaro@linaro-alip:~$ grep -c processor /proc/cpuinfo
6

IP 확인

linaro@linaro-alip:~$ ip addr

Pythone 버전 확인

linaro@linaro-alip:~$ python --version
Python 2.7.13
linaro@linaro-alip:~$ python3 --version
Python 3.5.3

GPIO 확인

linaro@linaro-alip:~$ gpio readall
 +-----+-----+---------+------+---+--Tinker--+---+------+---------+-----+-----+
 | CPU | wPi |   Name  | Mode | V | Physical | V | Mode | Name    | wPi | CPU |
 +-----+-----+---------+------+---+----++----+---+------+---------+-----+-----+
 |     |     |    3.3v |      |   |  1 || 2  |   |      | 5v      |     |     |
 |  73 |   8 | GPIO2B1 |   IN | 1 |  3 || 4  |   |      | 5v      |     |     |
 |  74 |   9 | GPIO2B2 |   IN | 1 |  5 || 6  |   |      | 0v      |     |     |
 |   8 |   7 | CLKOUT2 |  CLK | 0 |  7 || 8  | 1 | IN   | GPIO2C1 | 15  | 81  |
 |     |     |      0v |      |   |  9 || 10 | 1 | IN   | GPIO2C0 | 16  | 80  |
 |  83 |   0 | GPIO2C3 |   IN | 1 | 11 || 12 | 0 | IN   | GPIO3D0 | 1   | 120 |
 |  85 |   2 | GPIO2C5 |   IN | 0 | 13 || 14 |   |      | 0v      |     |     |
 |  84 |   3 | GPIO2C4 |   IN | 0 | 15 || 16 | 0 | IN   | GPIO2C6 | 4   | 86  |
 |     |     |    3.3v |      |   | 17 || 18 | 0 | IN   | GPIO2C7 | 5   | 87  |
 |  40 |  12 | GPIO1B0 |   IN | 1 | 19 || 20 |   |      | 0v      |     |     |
 |  39 |  13 | GPIO1A7 |   IN | 1 | 21 || 22 | 0 | IN   | GPIO3D4 | 6   | 124 |
 |  41 |  14 | GPIO1B1 |   IN | 1 | 23 || 24 | 1 | IN   | GPIO1B2 | 10  | 42  |
 |     |     |      0v |      |   | 25 || 26 | 0 | IN   | GPIO0A6 | 11  | 6   |
 |  71 |  30 | GPIO2A7 |   IN | 1 | 27 || 28 | 1 | IN   | GPIO2B0 | 31  | 72  |
 | 126 |  21 | GPIO3D6 |   IN | 0 | 29 || 30 |   |      | 0v      |     |     |
 | 125 |  22 | GPIO3D5 |   IN | 0 | 31 || 32 | 0 | IN   | GPIO4C2 | 26  | 146 |
 | 150 |  23 | GPIO4C6 |  OUT | 1 | 33 || 34 |   |      | 0v      |     |     |
 | 121 |  24 | GPIO3D1 |   IN | 0 | 35 || 36 | 1 | IN   | GPIO2C2 | 27  | 82  |
 | 149 |  25 | GPIO4C5 |   IN | 0 | 37 || 38 | 0 | IN   | GPIO3D3 | 28  | 123 |
 |     |     |      0v |      |   | 39 || 40 | 0 | IN   | GPIO3D7 | 29  | 127 |
 +-----+-----+---------+------+---+----++----+---+------+---------+-----+-----+
 | CPU | wPi |   Name  | Mode | V | Physical | V | Mode | Name    | wPi | CPU |
 +-----+-----+---------+------+---+--Tinker--+---+------+---------+-----+-----+
